How Do Wireless Earphones Work?

2025-07-11 17:34
1. The Core Connection: BT Technology
The heart of wireless audio is BT technology. Here's the process:
Pairing
Your earphones and source device (phone, laptop) establish a secure, low-energy radio link (2.4 GHz frequency band).
Digital Transmission
Audio from your device is converted into a digital signal.
Radio Waves
This signal is transmitted as encrypted radio waves through the air.
Reception & Conversion
The earphones' receiver chip decodes the signal, converting it back into analog electrical currents.
Sound Production
These currents drive tiny drivers (speakers) in each earbud, vibrating to create sound waves you hear.

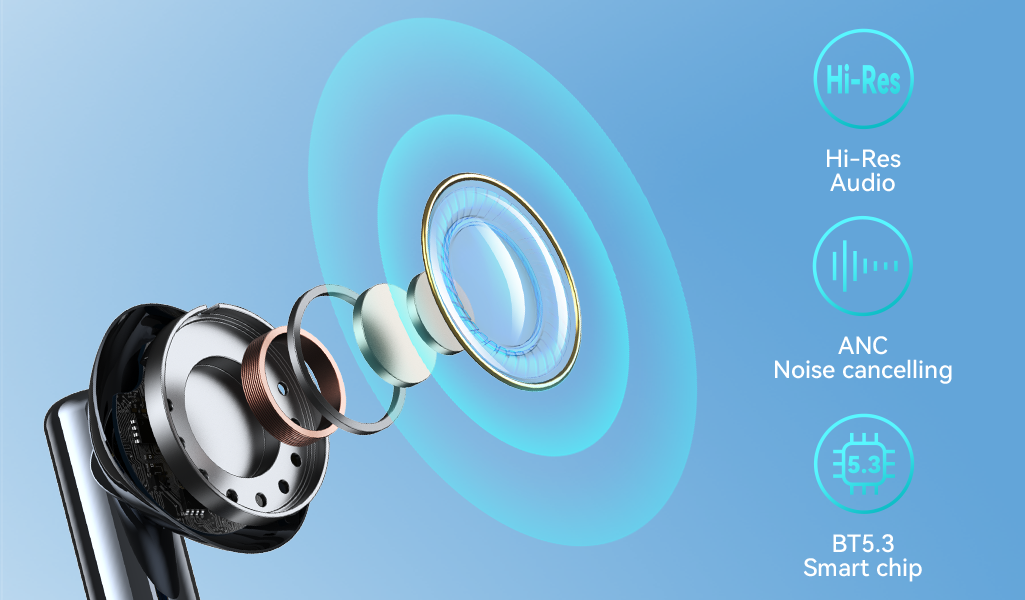

2. Key Components Inside Your Wireless Earphones
BT Chip/Module
The brain handling connection, data reception, and signal decoding. Newer versions (like BT 5.0, 5.2, 5.3) offer better range, stability, and efficiency.
Drivers
Convert electrical signals into sound (common types: dynamic, balanced armature). Size and quality impact audio quality and bass response.
Battery
Rechargeable lithium-ion batteries power all components. Battery life varies (3-12+ hours per charge), with charging cases extending total use.
Microphones
Essential for calls, voice assistants (Google Assistant, Siri), and active noise cancellation (ANC). Multiple mics are common.
Antenna
Embedded in the design to receive/transmit radio signals effectively.
Codecs
Software that compresses/decompresses audio data. Common codecs include SBC, AAC, aptX, aptX HD, LDAC, and LC3. Higher-quality codecs preserve more detail but depend on device support.
3. True Wireless (TWS) vs. Neckband Headphones
True Wireless Earbuds (TWS)
Completely wire-free. One bud (usually the right) acts as the primary, connecting to your device and relaying audio to the secondary bud via a separate short-range link.
Neckband/Wireless Neckphones
Earphones connected by a cable around the neck, housing the battery and core electronics. Often offer longer battery life than TWS.
4. Enhancing the Experience: Advanced Features
Active Noise Cancellation (ANC)
Uses microphones to pick up external noise, then generates an inverse sound wave to cancel it out electronically. Crucial for immersive sound.
Ambient Sound Mode/Transparency Mode
Microphones pipe in external sounds, keeping you aware of your surroundings.
Touch Controls
Capacitive sensors on the earbuds handle play/pause, volume, track skipping, and calls.
Wireless Charging
Many cases support Qi wireless charging for cable-free power-ups.
Low Latency Mode
Minimizes audio delay (crucial for gaming/video), often using codecs like aptX LL or proprietary tech.
5. Powering Up: Batteries & Charging Cases
Charging Cases
Protect earbuds and recharge them on the go. Cases themselves are charged via USB-C or wirelessly. Fast charging features offer hours of playback from minutes in the case.
Battery Management
Efficient chips optimize power use, extending playtime. Features like auto-pause when removing an earbud conserve energy.
6. Overcoming Challenges
Battery Life
Limited by small battery size. Advancements focus on efficiency and faster charging.
Audio Latency
The slight delay between source and sound. Improved BT versions and codecs reduce this.
Connection Stability
Interference from Wi-Fi or other devices can cause dropouts. BT 5.0+ offers better resilience.
Sound Quality
Early wireless audio suffered vs. wired. Modern BT audio with high-bitrate codecs like LDAC and aptX Adaptive has closed the gap significantly.
The Future of Wireless Sound
Wireless earphone technology evolves rapidly! Expect better battery life, smarter adaptive noise cancellation, enhanced spatial audio, lossless audio support (LE Audio with LC3 codec), and deeper integration with wearable tech and AI assistants.
